·Description |

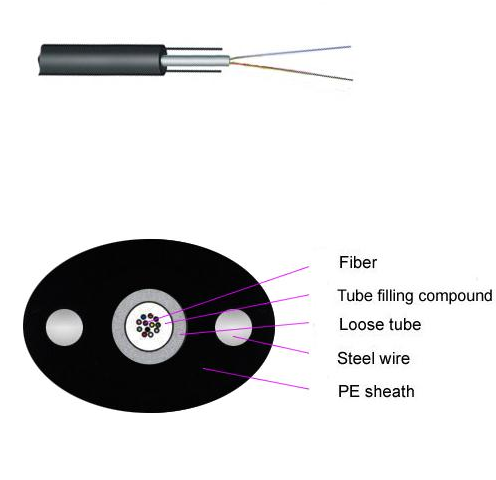

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath. |
·Characteristics |
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· Inexpensive and can reduce operating costs
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length |
·Optical Characteristics |
| G.652 | G.655 | 50/125μm | 62.5/125μm | Attenuation (+20℃) | @850nm | | | ≤3.0 dB/km | ≤3.0 dB/km | @1300nm | | | ≤1.0 dB/km | ≤1.0 dB/km | @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | | | @1550nm | ≤0.22 dB/km | ≤0.23dB/km | | | Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km | @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km | Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA | Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm | | |
|
·Technical Parameters |
Cable Type | Fiber Count | Cable Diameter
mm | Cable Weight kg/km | Tensile Strength
Long/Short Term N | Crush Resistance
Long/Short Term
N/100mm | Bending Radius
Static
/Dynamic
mm | GYXTPY | 1~2 | 5.6 | 34 | 500 | 500 | 10D/20D | GYXTPY | 3~6 | 6.0 | 38 | 500 | 500 | 10D/20D | GYXTPY | 7~12 | 6.5 | 43 | 500 | 500 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃ |
