AI-6A Optic Splicing Machine Optical Fiber Fusion Splicer
AI-6A

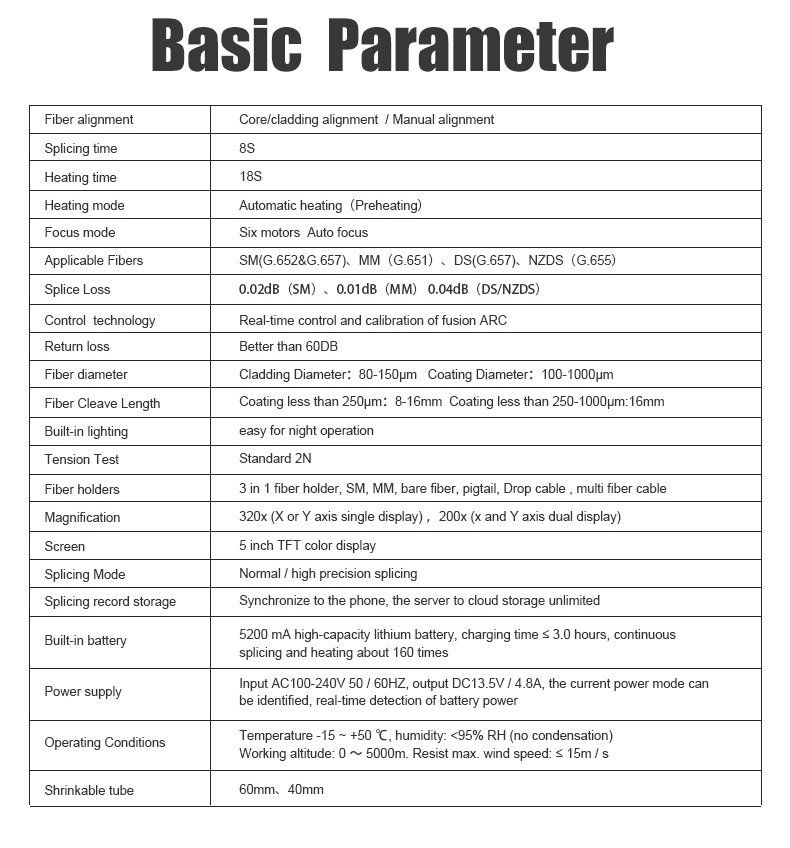

Motor number:6 motors
Splicing time:8S
Heating mode:18s , can be customized
The cladding diameter:80-150μm
Fiber diameter:Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Heat shrink tube:60mm,50mm,40mm,25mm
Splicing loss:0.02dB(SM),0.01dB(MM)0.04dB(DS/NZDS)
Splicing way:Automatic, semi-automatic

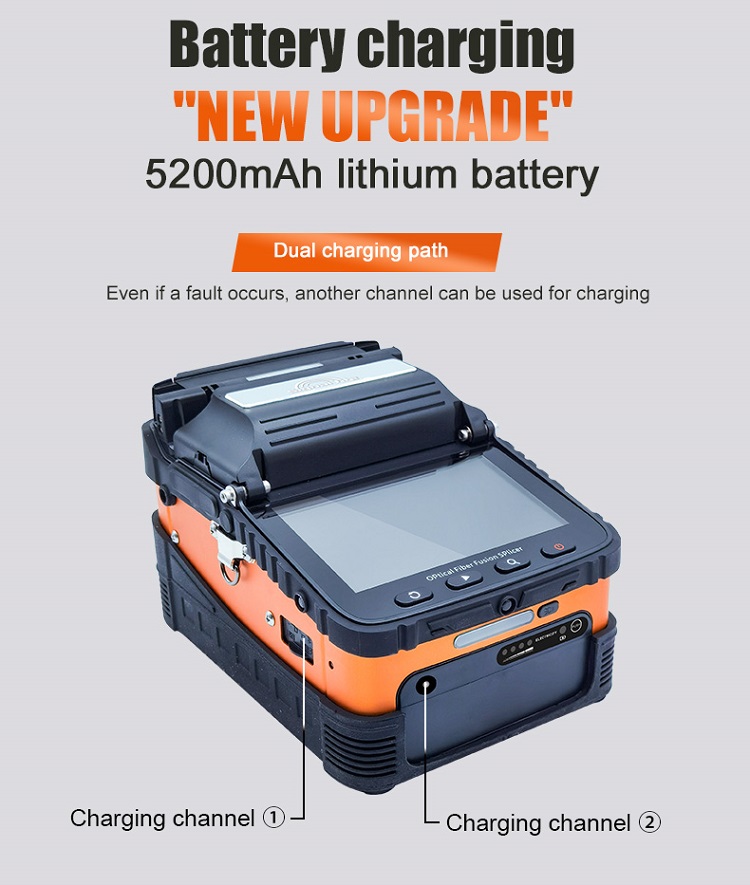

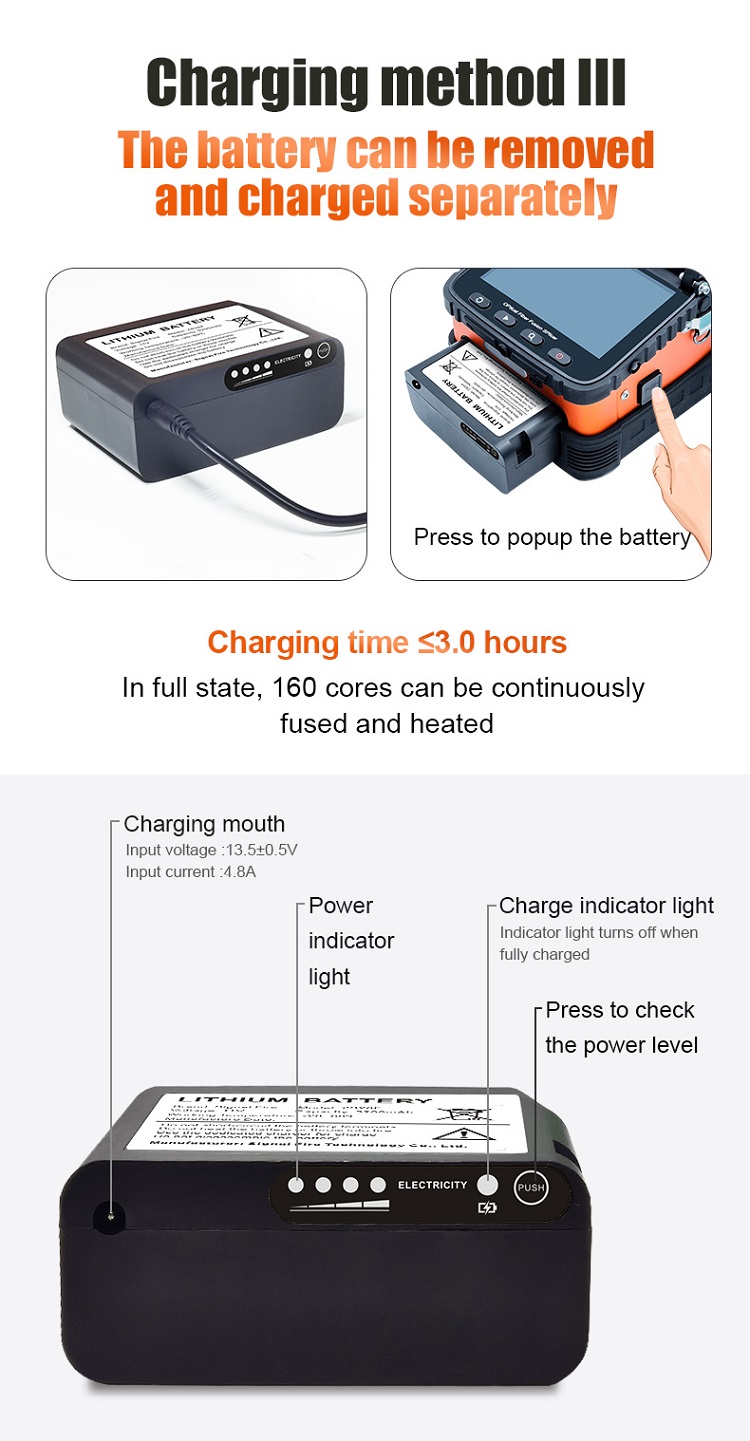

Battery capacity:5200mAh large capacity lithium battery
Splicing time:8S
Heating mode:18s , can be customized
The cladding diameter:80-150μm
Fiber diameter:Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Heat shrink tube:60mm,50mm,40mm,25mm
Splicing loss:0.02dB(SM),0.01dB(MM)0.04dB(DS/NZDS)
Splicing way:Automatic, semi-automatic
Battery capacity:5200mAh large capacity lithium battery
Quantity
High-end luxury：

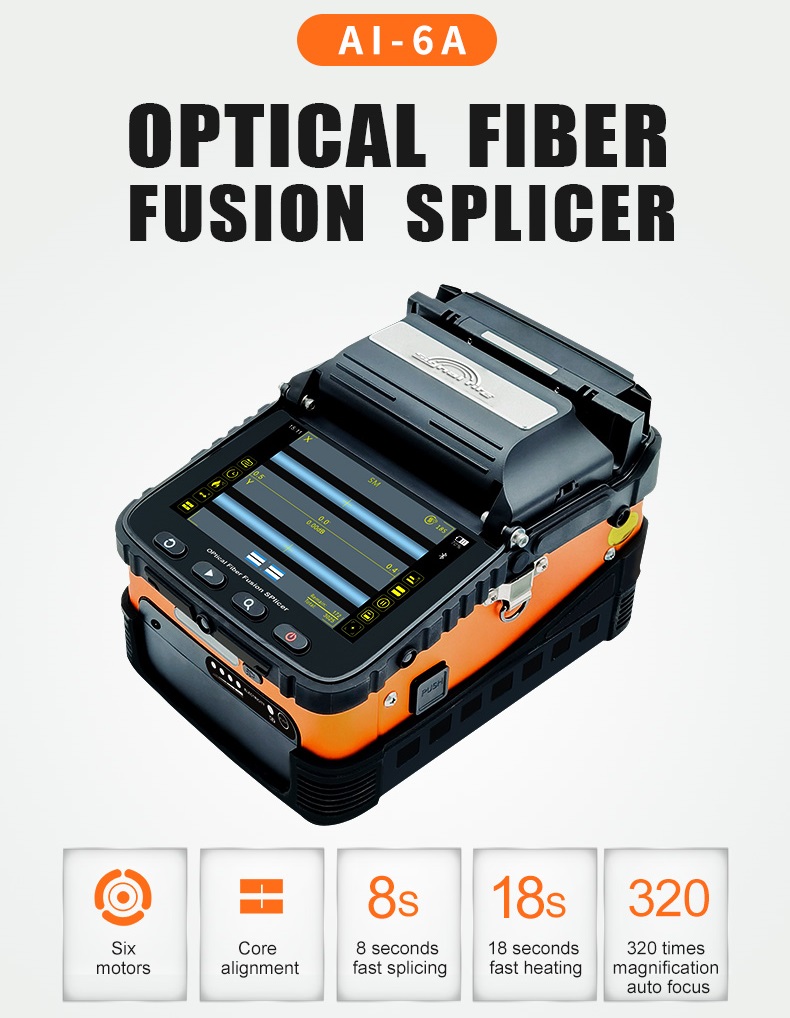

fiber splicer AI-6A is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function. Industrial quad-core CPU, fast running speed, 8 seconds fast welding, 18 seconds fast heating,
5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine. Large-capacity lithium battery can be heated by fusion of about 160 cores, high altitude, desert, extremely cold and other harsh environment performance is still outstanding.
fiber splicer AI-6A is a six-motor, fiber core alignment automatic fiber welding machine, with optical power, red light detection function. Industrial quad-core CPU, fast running speed, 8 seconds fast welding, 18 seconds fast heating,
5 inches high resolution LCD screen, 300 times magnification; The working efficiency is 50% higher than that of ordinary welding machine. Large-capacity lithium battery can be heated by fusion of about 160 cores, high altitude, desert, extremely cold and other harsh environment performance is still outstanding.

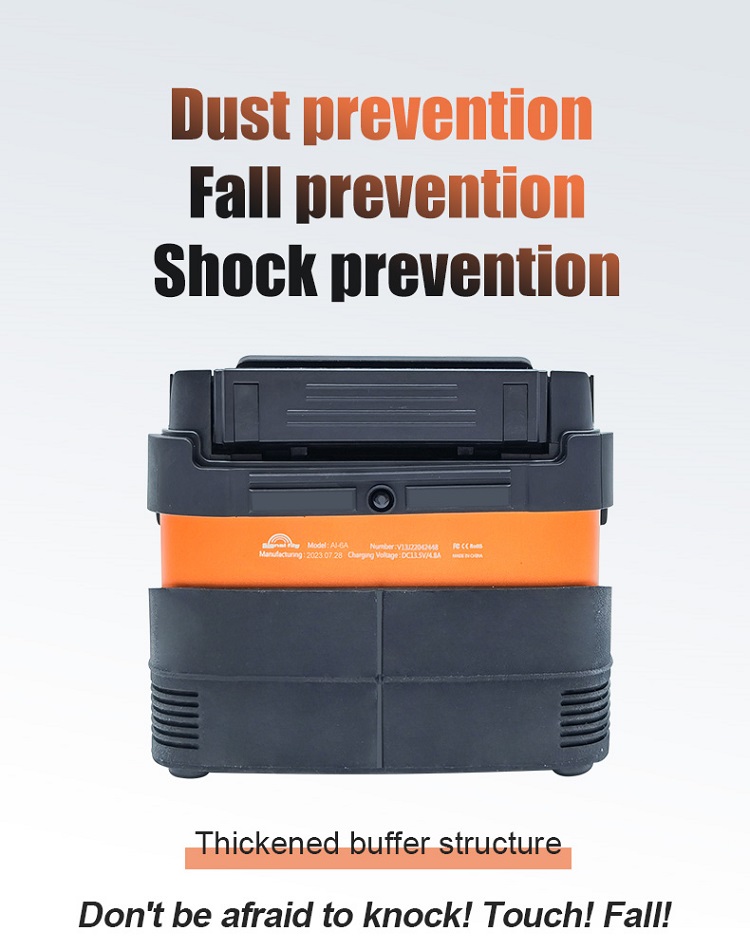

Metal body with beautiful details： Used in telecom, mobile, Unicom, radio and television operatorsposts and telecommunications, railway engineering companiesand institutions of optical cable line construction, line maintenance,emergency repair, security monitoring and research institutes research, teaching.
Within VFL and OPM function： Effectively measure connection losses, verify continuity, and help evaluate fiber link transmission quality.
