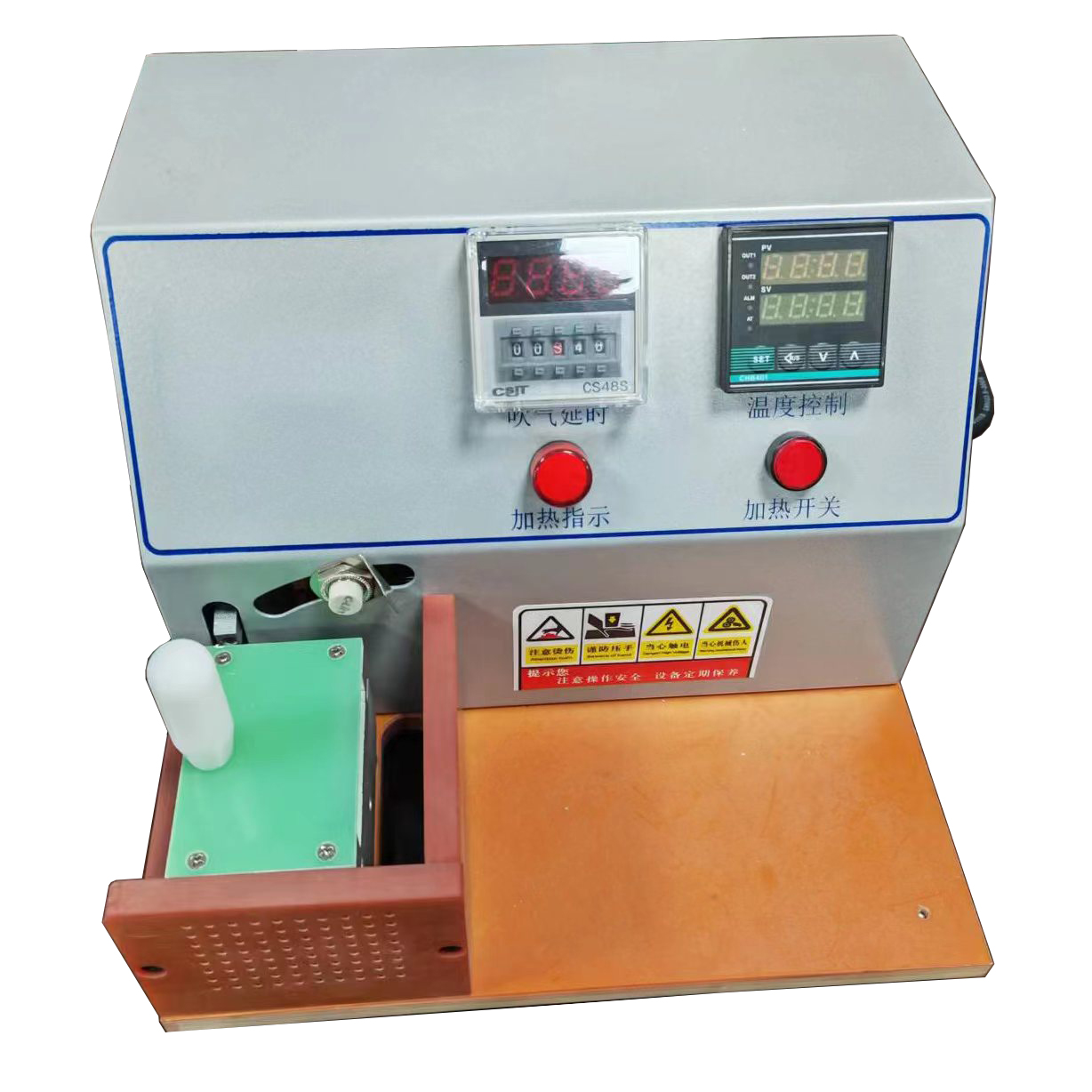

0.9mm cable wire hot stripping machine

0.9mm cablehot stripper

This fiber optic cable stripper be used to remove fiber optic jacket , With imported blades, remove the jacket when heated .Compared with traditional manual stripper, it is more accurate and fast.

Features

1. Suit for 0.9mm indoor cables .
2. Can strip 1-8pcs cable one times
3. Set the blowing time, automatically sense the blowing, and blow away excess fiber optic cable tubes.
4. Equipped with a plastic chassis, collecting waste, and a clean and tidy desktop
5. Simple to operate, suitable for anyone, including novice.
6. High precision blade, precise fiber stripping.
7. With heat function ,easy to remove the jacket ,high efficiency.

Operation method

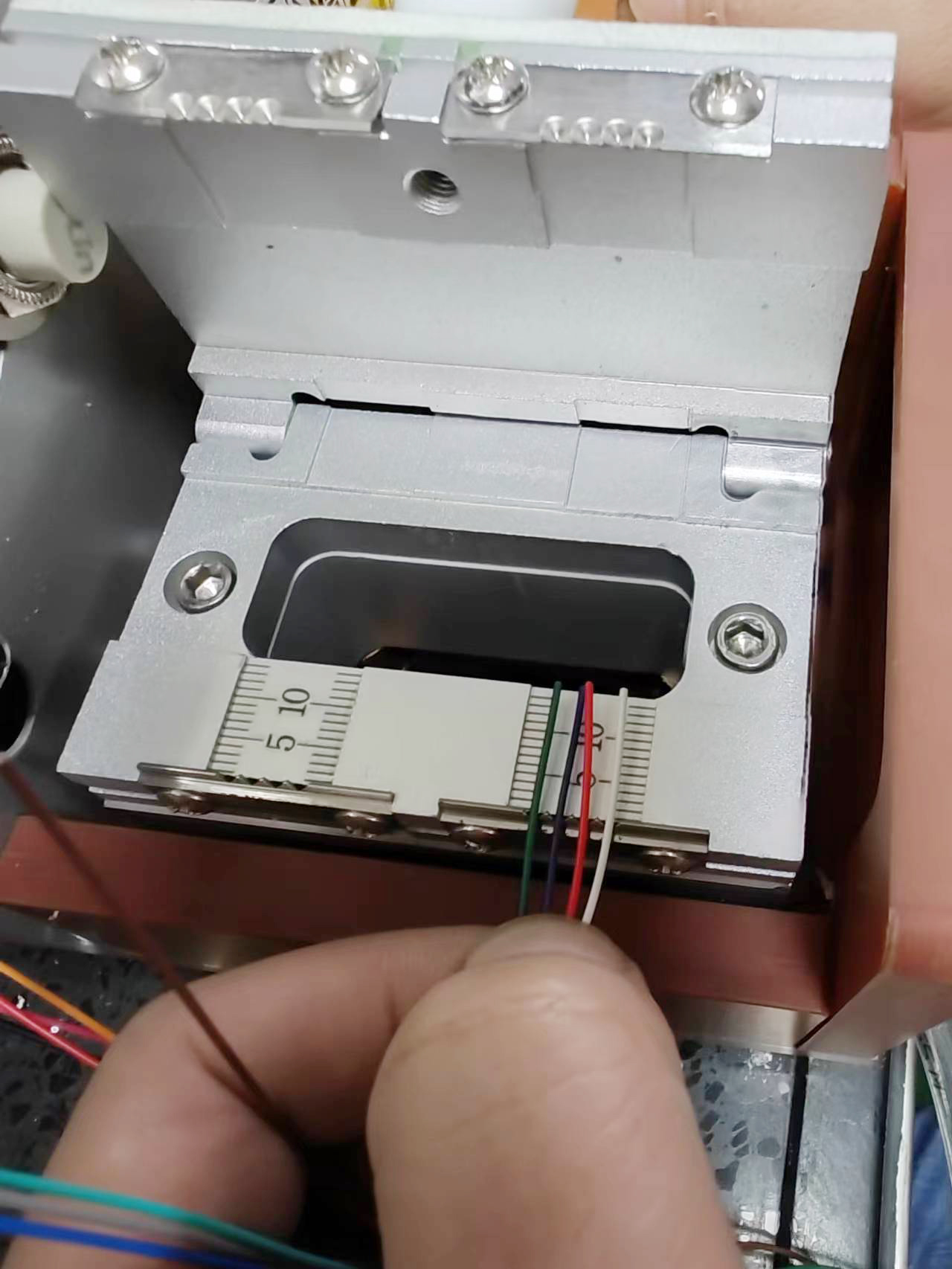

Firstly ,adjust the blade height, according to customer’s requirement , We also have adjusted the blade height before delivery.  Loose screw,you can adjust the blade height, pls refer below pic.

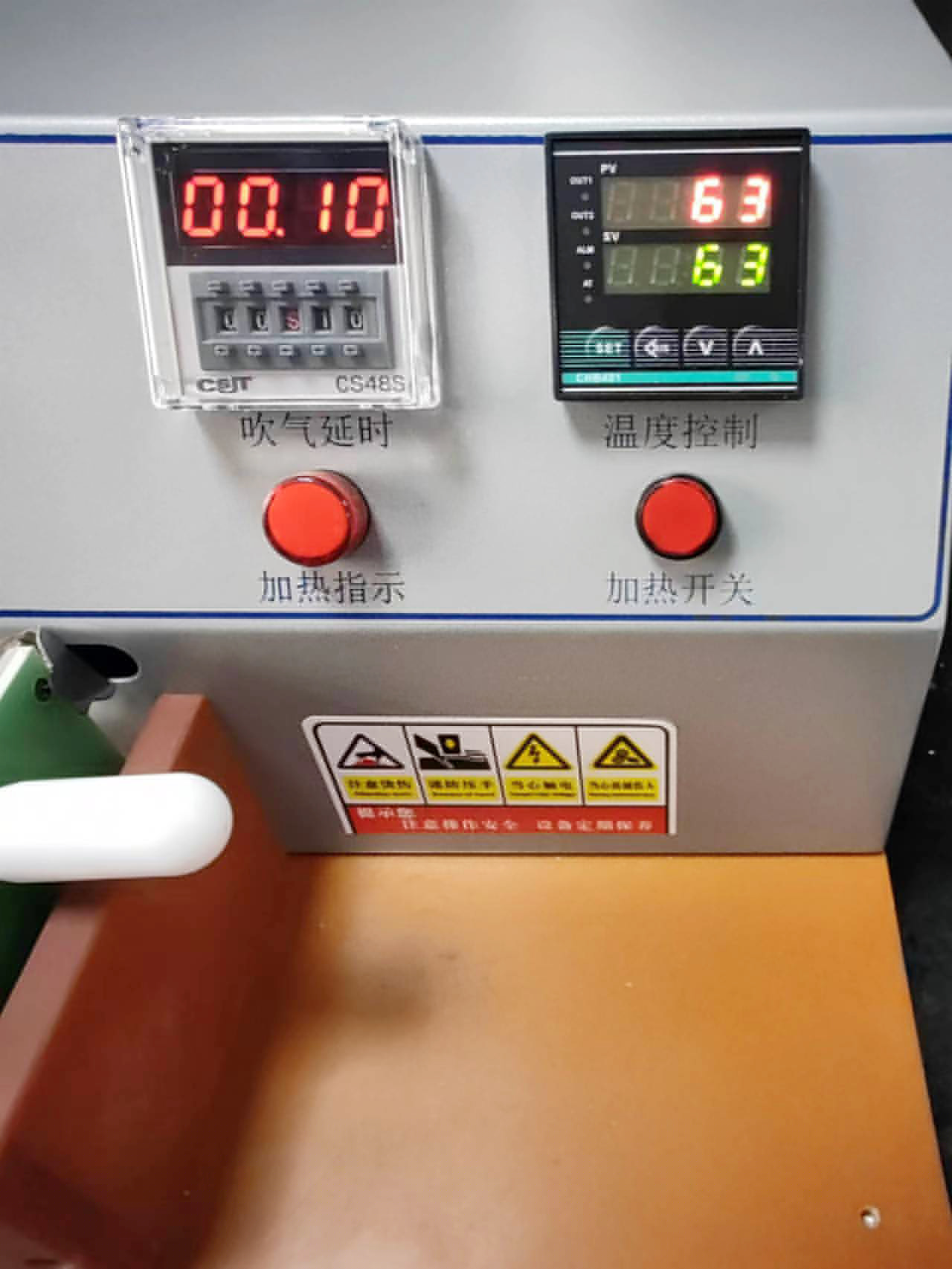

Connect the power, turn on the power switch, Set the blowing time and the heating temperature(as usual 60 ℃), it can work.

Safety attention

1.Attention no water blow or soak into machine box causing damage to electrical system even the machine includes water-proof feather.

2. Avoid improper vibration & impact to machine.

3.Not touch buttons/switches with wet fingers.

4.Assure correct power source voltage & frequency.

5. Pay attention to safety during operation and be careful of high temperature scald during operation.
