5MW 10MW 20MW 30MW Fiber Tester Laser Pen Visual Fault Locator
visual fault locator
Output power:5mW 10mW 20mW 30mW 50mW
Connector:2.5mm universal adapter;1.25mm connector optional
Working mode:CW or 2Hz modulation
Operating temperature:0~+40 °C
Storage temperature:-25~+70 °C
Power:2pcs AA batteries（not included)
Working hours:≥ 60(1mW)
Wavelength:650nm ± 10nm
Applicable interface:ST / SC / FC
Connector:2.5mm universal adapter;1.25mm connector optional
Working mode:CW or 2Hz modulation
Operating temperature:0~+40 °C
Storage temperature:-25~+70 °C
Power:2pcs AA batteries（not included)
Working hours:≥ 60(1mW)
Wavelength:650nm ± 10nm
Applicable interface:ST / SC / FC
Quantity
Feature:

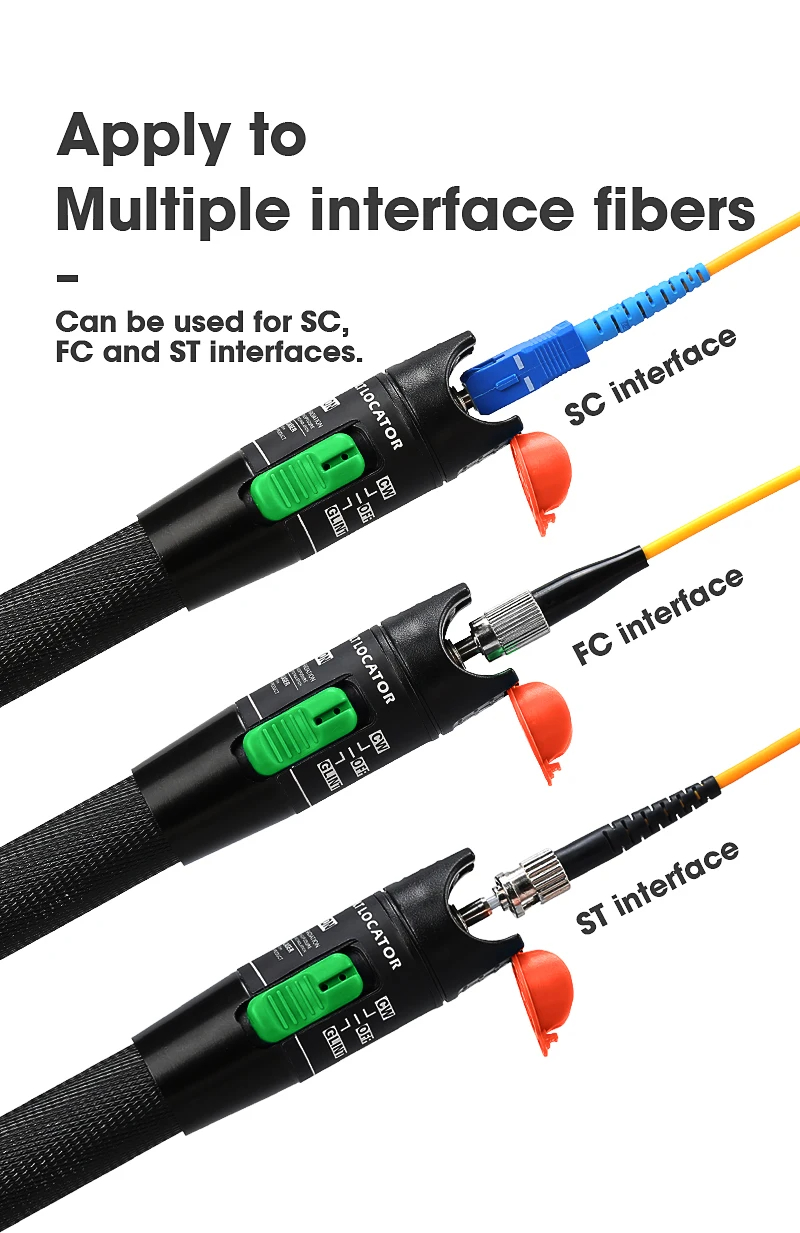

1. Universal connector: The detector connector is designed in a compatible way for ST, SC, FC interfere both in circular
and square shape of different fiber optic cables.
and square shape of different fiber optic cables.
2. Convenient design and excellent function: Small size and weight.
3. Easy and accurate identification: You can easily and accurately detect and locate fiber breaks, poor connections, bending or cracking.
4.Metal body, wear-resistant and anti-drop.

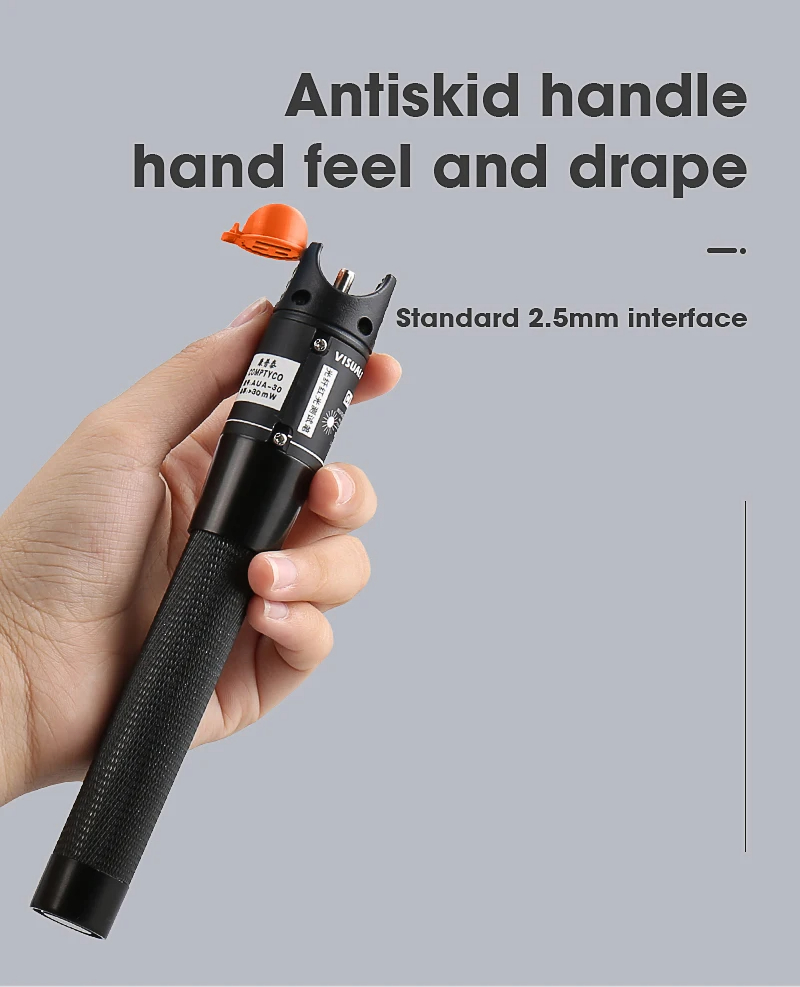

5. Non-slip handle, comfortable touch feeling.

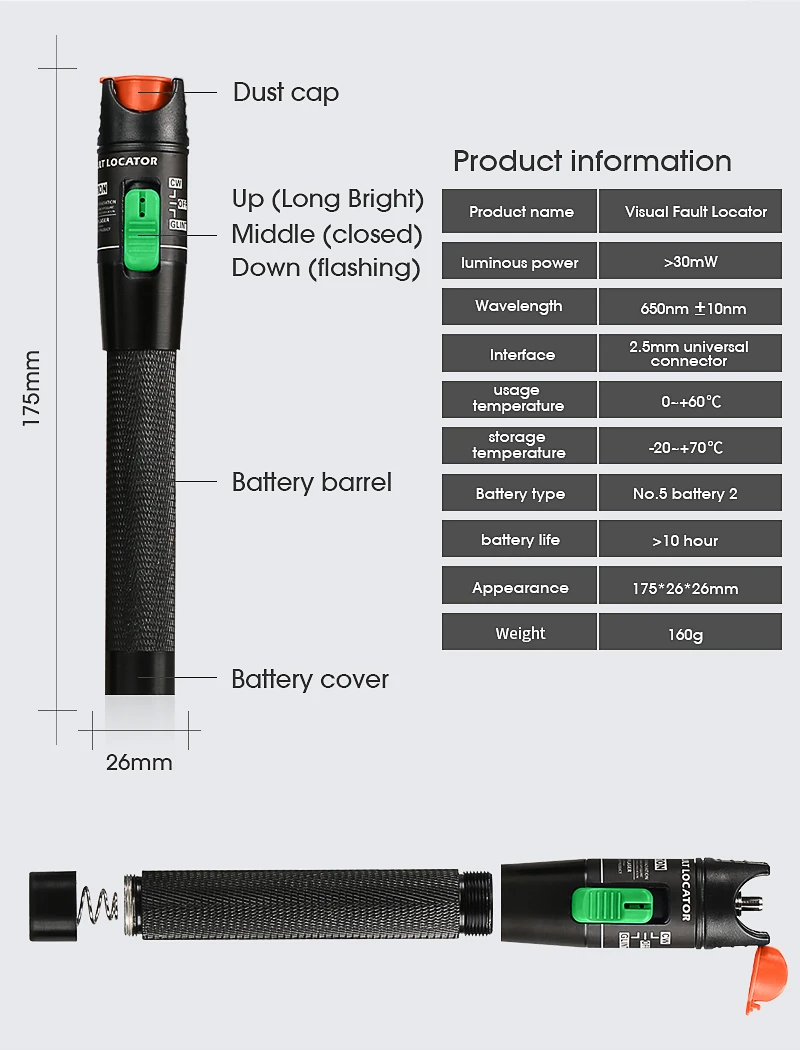

Specification:
Material: Metal body
Type:5~50mW Measurement distance: 5~50 kilometers
Power supply: 2pcs AA batteries (not included)
Colour: Black
Note:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slightly measuring deviation due to manual measurement.
